Disassemble of the Elevator

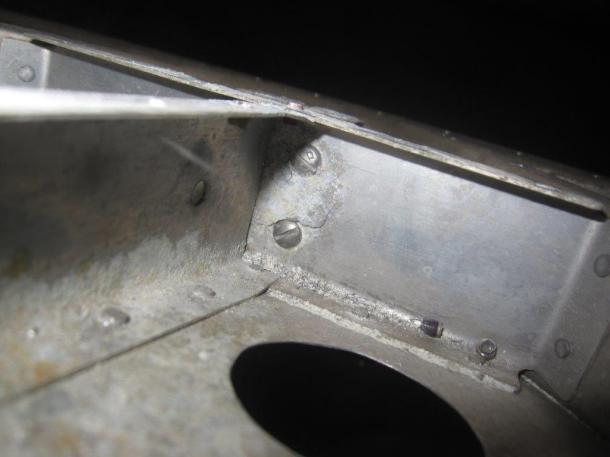

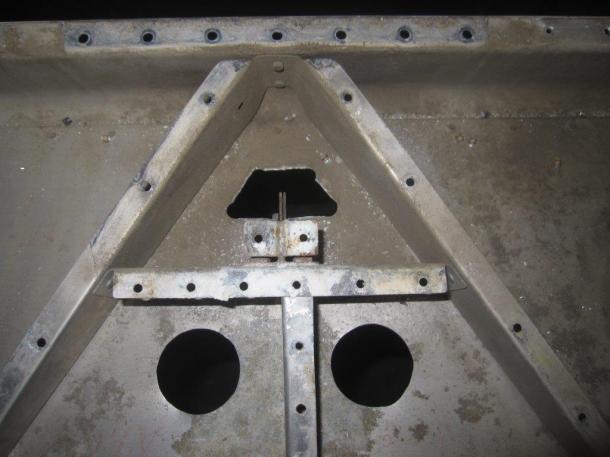

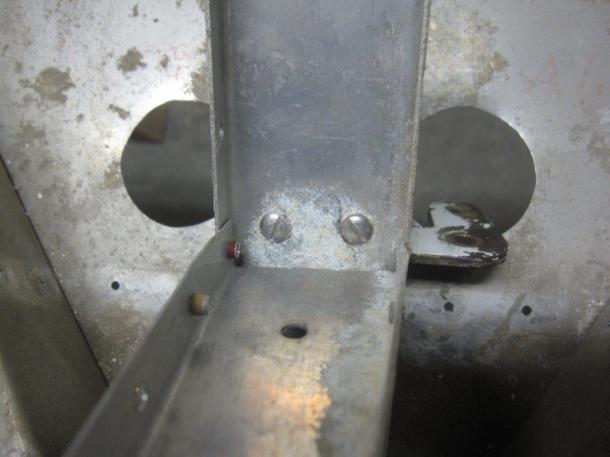

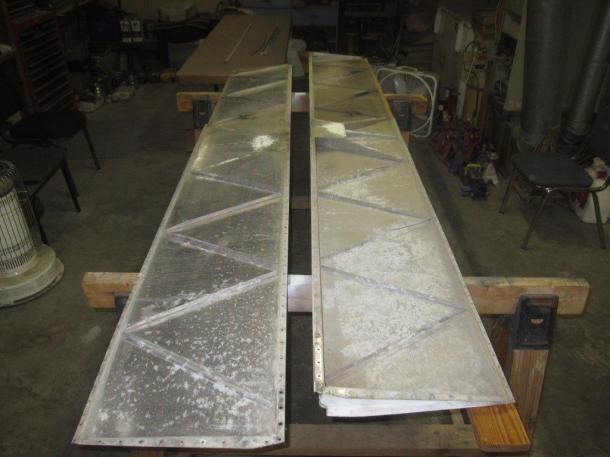

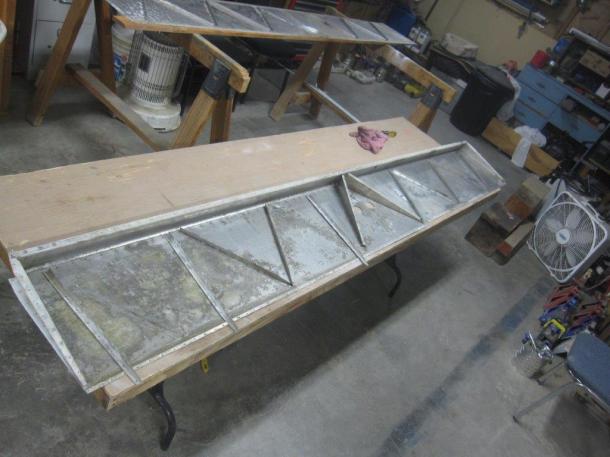

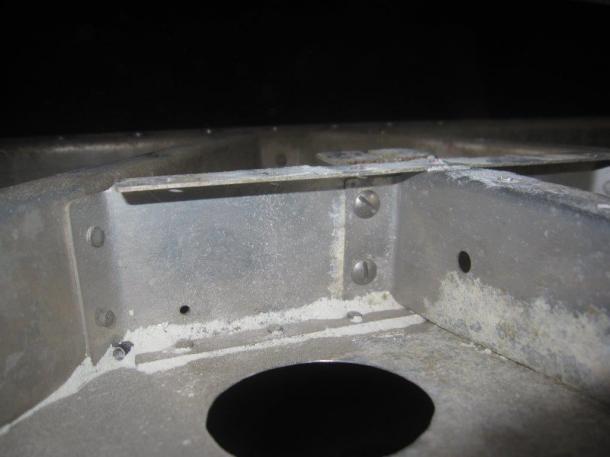

I removed the top skin of the elevator by drilling out the AN470AD universal head and AN426AD countersunk rivets around the outside, and the 29 du Pont DR-127A brazier head explosive (blind) rivets (see drawing number A-562) from the 415-22005 Horn Rib, 415-22010 Center Rib, and the 415-22006 Channel. As you can see, it did not get any better looking after removing the top skin.

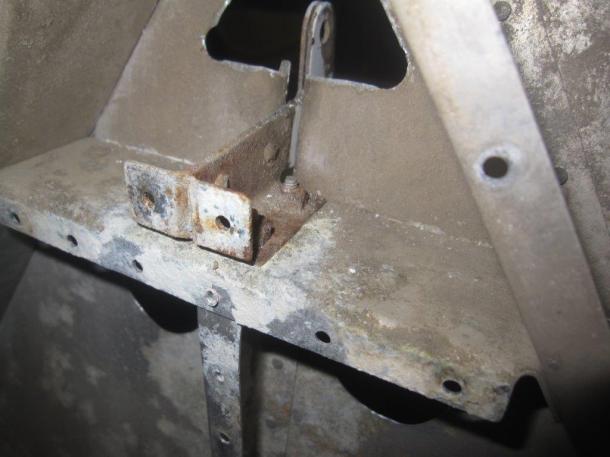

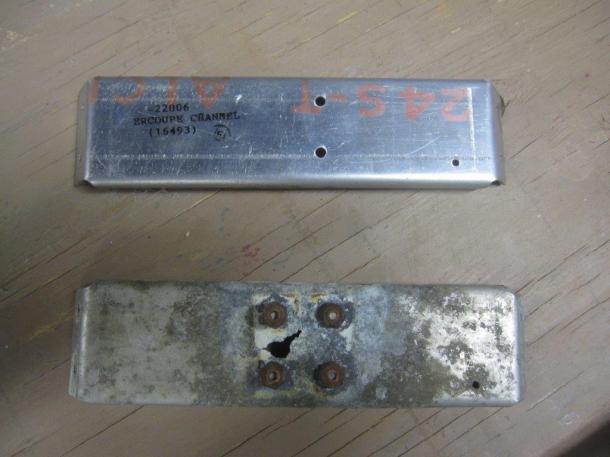

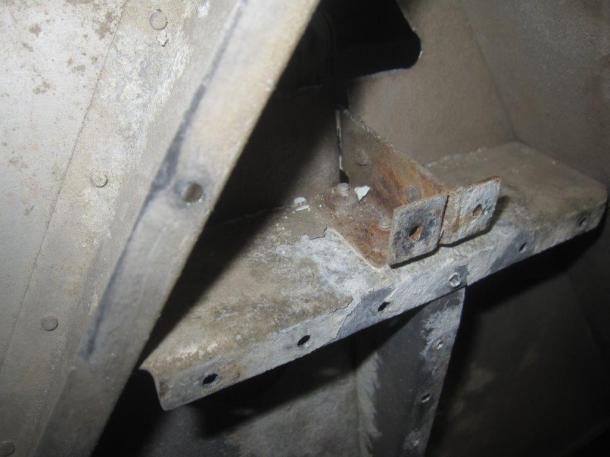

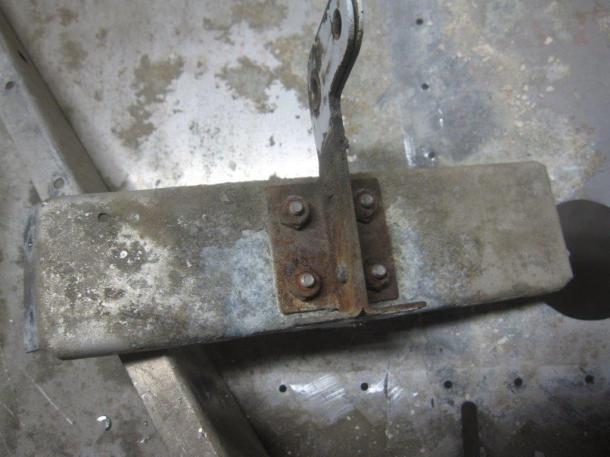

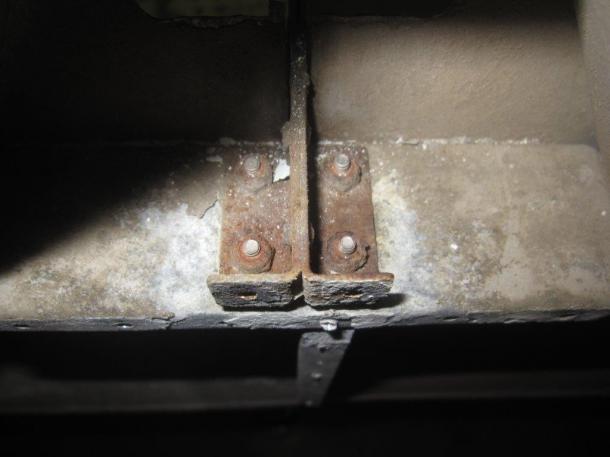

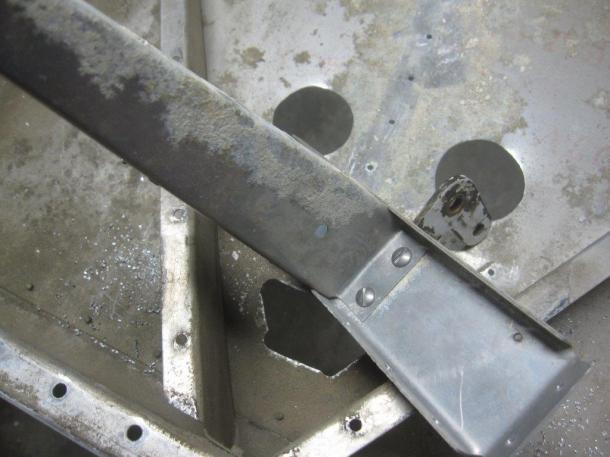

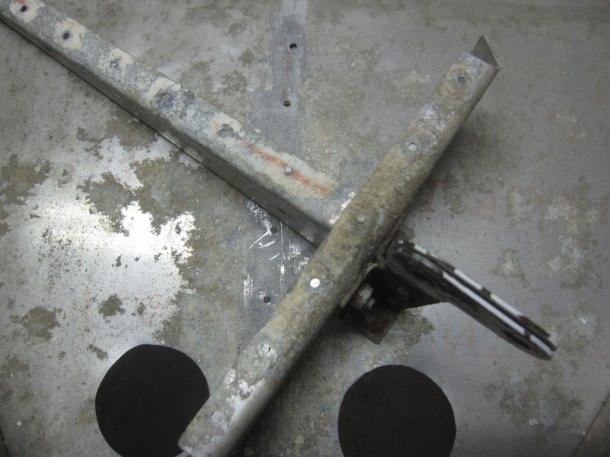

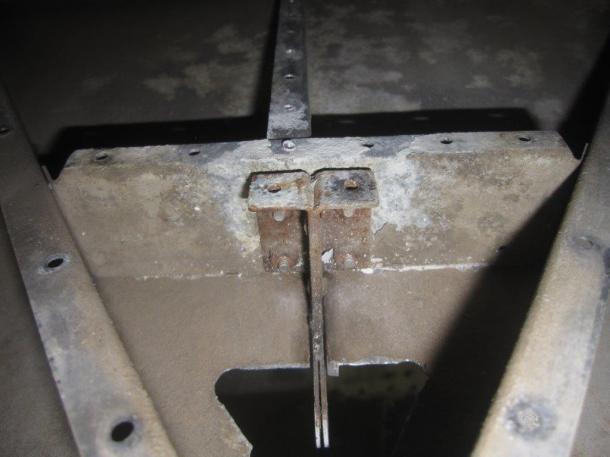

Notice how the elevator attachment channel basically dissolved.
